Remote Test Lab

RTL is offered as a system equipped with core functionalities ( ), complemented by a range of optional add-on modules and features ( )

Remote video stream management

Streams content of any display used in vehicles, including the Central Display (CID), Driver Display (FID), Passenger Display (PID), and Head-Up Display (HUD).

Remote touchscreen interactions

Enable remote execution of touchscreen inputs such as clicks, swipes, and one-finger gestures.

Remote control of test bench buttons

Remotely operate buttons on the test bench, such as steering wheel buttons and central display buttons.

Remote management of relay-controlled signals and switching components

Read and control the states of relay signals such as Clamps, Start-Stop, Hood, Door, Power Supply, and more. Remote switching on and off of individual components or the whole test bench.

Remote access to the test bench computer and control of preferred test tools

Operate your preferred tools and frameworks installed on the test bench computer, including ODIS, ENNA Framework, CANoe, HMI Monitor, and others.

Remote tracing & logging

Customizable to client specifications, the system offers tracing and logging capabilities essential for detecting errors, analyzing software behavior, and facilitating subsequent software enhancements.

Low latency

Devices are engineered to operate with minimal latency. The actual latency largely depends on the physical distance between the tester and the server.

Volkswagen Group compatible

Available on the internal Volkswagen network. Guarantees high-level security and compatibility.

RTL UI

Remote video stream management

Remote touchscreen interactions

Remote control of test bench buttons

Remote management of relay-controlled signals and switching components

Remote access to the test bench computer

Flash ECUs and apps remotely

Perform remote ECU software updates using the test bench computer equipped with applications such as ODIS or IDEX. No need for physical access to the testbench.

Remote control of android mobile devices

Gain access and control over mobile devices connected to the test bench, facilitating connectivity testing between the mobile phone and the infotainment system.

Optimization for performance testing

Solution offers tracing, video and image capturing, and infotainment control, all designed to minimize the load on ECUs during testing. Ensuring that their performance remains unaffected by the testing activities.

Remote capture of
up to 4 displays

Remotely capture video from up to four displays at the same time using this module equipped with FrameGrabber 4.

Two-way audio transmission

Send audio to and from the test bench. Test the voice assistant, infotainment system and application sounds remotely.

Test management features:
Streamline your testing, optimize test benches

Comprehensive management tools ( ) designed to enhance efficiency in testing environments. From user and lab management to sophisticated test bench configuration and reservation systems, our features ensure seamless operation and test execution.

RTL dashboard

Track user reservations, activities, availability, and status of test benches.

Maintenance management system

Display status of current HW and SW version and compare with target state. Prevent test invalidation due to mismatches in hardware and software versions.

User, labs, and test benches management

Efficiently manage user roles and group permissions with our user management feature. Create and organize labs and test benches while assigning specific rights through lab management. Set up and overview all test bench details, including configurations and states, with test benches management.

Reservation system

Secure your testing workflow by reserving time slots on a test bench, either as a single booking or on a recurring basis until a specified end date. During these times, only the reservation owner can operate test bench and remote computer, while others can view test bench display stream.

Source data for
data visualization

The system tracks usage data of test benches and users. Data shows difference between reservation time and usage time, it could be useful for test bench fleet optimization. This data is ready for analysis and visualization using third-party tools such as Tableau or Power BI.

RTL with new test bench

Acquire RTL as part of a custom-built test bench tailored to your specifications. This option delivers a turnkey solution, integrating the RTL system directly into a new test bench designed specifically to meet your testing requirements and operational workflow.

Integration into existing test bench

Opt for integration of RTL into your existing test infrastructure. Our team will seamlessly integrate RTL functionalities into your current test benches, enhancing them with advanced remote testing capabilities without the need for completely new hardware.

Custom solution

If none of our standard solutions meet your needs, we can create a custom solution tailored to your specific testing requirements. Our team will work closely with you to develop a setup that perfectly aligns with your operational goals and testing protocols.

Unlock the power of remote automotive testing

Connect testers from around the globe. Make it work 24/7

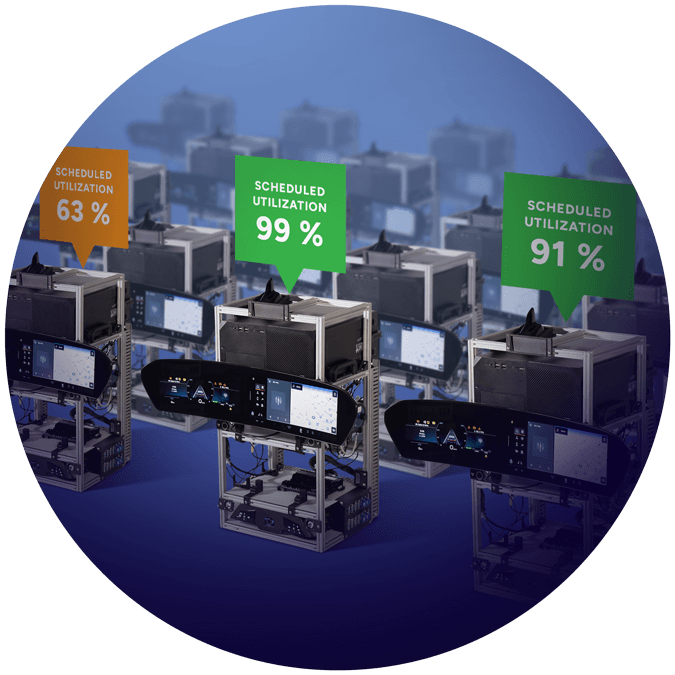

Optimize your test bench utilization. Coordinate people and testing projects

Free staff from being chained to the test bench. Enhance their comfort

Leverage shared expertise to elevate testing quality across the Volkswagen Group

Watch the RTL
product video

RTL variants

RTL Professional aaaa + aaaa

RTL Lite aaaa

RTL other info

Documentation

Basic mail support

Advanced support
